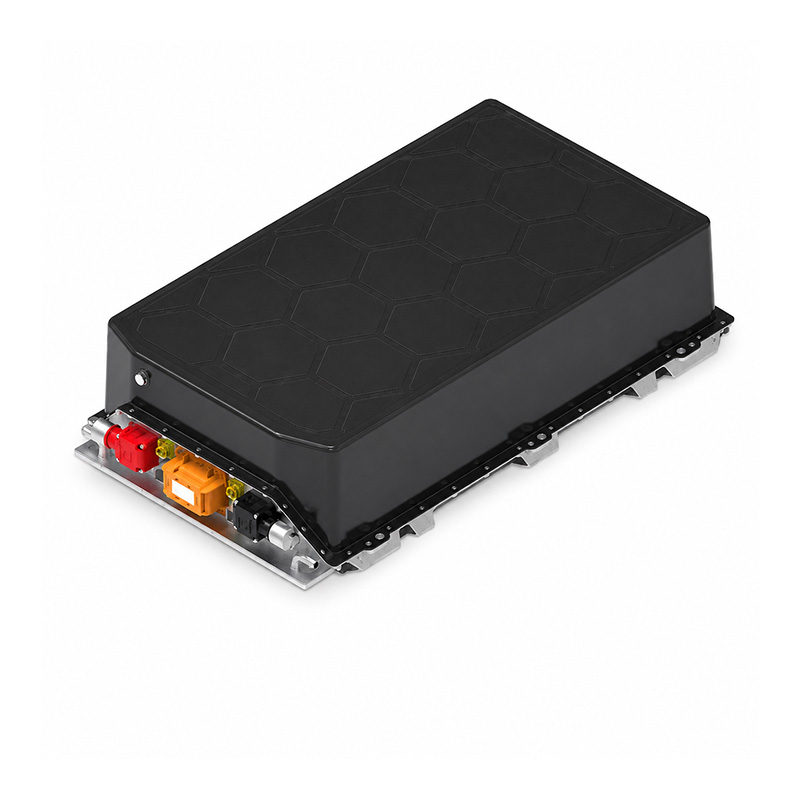

LF173-C
LF173-C
System Rated Voltage (V)：202.86
Max. Charging Current (A)：173
System Energy (kWh)：35.09
Single Pack Dimensions (mm)：1060 × 630 × 240
Single Box Weight (kg)：232
Specific Energy (Wh/kg)：≥156.4
Thermal Management：Heating Film / Natural Cooling or Liquid Cooling
Operating Temperature (°C)：-30 ~ 60
IP Protection Rating：IP68
Specifications
| Cell Model | Series-Parallel Configuration | Single-Branch | Dual-Branch | |||||||
| Pack Voltage (V) | Series Count (S) | Energy (kWh) | Battery Box Configuration | Number of Battery Boxes | Number of Cells | Energy (kWh) | Battery Box Configuration | Number of Battery Boxes | Number of Cells | |
| LF173 | 521.64 | 162 | 90.243 | 3G | 3 | 162 | 180.486 | (3G)*2 | 6 | 324 |
| LF173 | 550.62 | 171 | 95.257 | 1C+2G | 3 | 171 | 190.514 | (1C+2G)*2 | 6 | 342 |
| LF173 | 579.6 | 180 | 100.27 | 2C+1G | 3 | 200 | 200.54 | (2C+1G)*2 | 6 | 360 |
| LF173 | 608.58 | 189 | 105.284 | 3C | 3 | 189 | 210.568 | (3C)*2 | 6 | 378 |
